wire mesh types sizes grades and applications

Wire mesh is one such versatile material used in every possible industry or application, also widely known as wire cloth or wire fabric and is available in various types of wire mesh. Be it for the construction of a fence, the making of a filter, or the fashioning of some decorative element, we can say the right mesh of wire does all the talking. The following blog will outline the various wire mesh types, materials used, mesh sizes, and some of the common applications.

What is Wire Mesh?

Wire mesh is an engineering material in which wires are interlocked to form a mesh and can be applied within an extremely wide range of industries: from construction and agriculture to filtration and many others. Its mechanical strength, durability, and customized properties make it one of the core elements in most industries.

What are the different types of wire mesh?

Wire mesh is differentiated based on its manufacturing process. Understanding different types of wire mesh is crucial for selecting the right mesh for your specific needs. Here are the primary types:

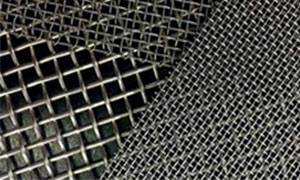

1. Woven Wire Mesh: It is produced by the interlacing of wires in a particular pattern. It offers both flexibility and strength. Woven wire mesh has various patterns of woven wire mesh weaves, namely:

Plain weave is the simplest type of wire mesh weave. It interlaces wires in an over-under pattern. The twilled weave offers a bit more in the way of strength in a diagonal wire pattern, where each warp wire passes over one and under two weft wires, and can be used on objects that need more tensile strength.

On the contrary, Dutch weave uses thinner wires for a weft and thicker wires for the warp, making a mesh with a reduced opening size, therefore more rigid and a higher dirt-holding capability. For this reason, it is particularly efficient for filtration applications.

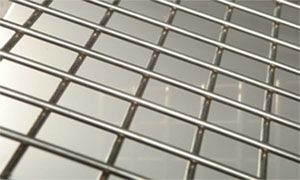

2. Welded Wire Mesh: It is constructed by welding intersecting wires at regular intervals, providing rigidity and stability. High-quality Welded wire mesh boasts a wide range of properties that make it an ideal choice for various applications. From strength and durability to flexibility and corrosion resistance, welded wire mesh has it all.

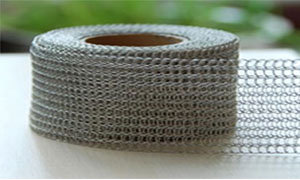

3. Knitted wire mesh: it is produced by interlocking metal wires using a knitting technique. The result is a flexible, stretchable mesh that maintains its shape and can conform to various surfaces. The Knitted wire mesh features a pattern of loops and interlocking stitches that give it its distinctive texture.

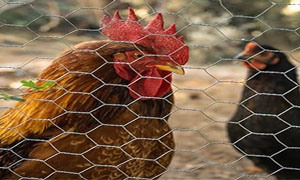

4. Chicken wire mesh: Chicken wire mesh, also known as poultry netting or hexagonal wire mesh,  has a very characteristic honeycomb pattern and finds broad usage in fencing, supports, guards, erosion control, animal enclosure, concrete reinforcement, and so on. Its design is specifically tailored to provide containment while allowing for ventilation and visibility. Usually produced with galvanized or coated wire to be resistant to rust and corrosion

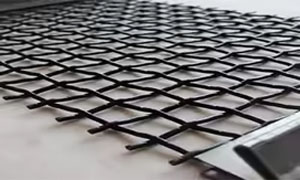

5. Aggregate screens: Aggregate screens play a crucial role in the mining and construction industries, efficiently sorting and classifying bulk materials like gravel, sand, and crushed rock. Constructed from durable steel or other robust materials, these screens are built to withstand harsh, abrasive conditions. Featuring multiple layers of mesh with varying sizes, aggregate screens ensure precise separation of materials based on particle size, optimizing the processing workflow for large-scale operations.

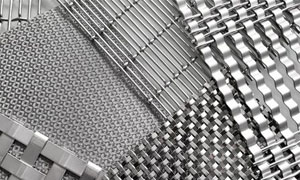

6. Architectural Mesh:  It’s a classy material in contemporary building design that unites functional and decorative applications. This is why the architectural metal mesh often finds its place in facades, sunshades, and elements of interior design that add special attractions to buildings while providing privacy screening and sun control. There are various patterns, finishes, and materials of architectural mesh available.

What are the different types of Wire Mesh Materials?

The choice of various types of wire mesh and the material to be used will depend on the specific application and desired properties, but here are some commonly used materials in making wire mesh:

  • Stainless Steel: Due to its anti-corrosive and strong properties with high strength, it is widely used in food processing, chemical industries and marine and architectural applications. Some common grades include 304 Stainless Steel, which has good corrosion resistance. 316 Stainless Steel has better corrosion resistance and is also known as marine steel. 316L Stainless Steel, also known as the low-carbon version of 316.
  • Carbon Steel: Steel wire possesses decent strength at an affordable price. It is normally galvanized or coated to protect against corrosion. Mostly applicable in construction and industrial uses.
  • Aluminium: it is lightweight and corrosion-resistant with the capability of easy forming. Applications are mostly architectural, filtration, and agricultural.
  • Copper: Good conductivity and heat dissipative properties are retained. Applied in electrical and filtration applications.
  • Brass: It retains good corrosion resistance and machinability. Applied in decorative and industrial uses.
  • Bronze: Strength, durability, corrosion resistance—used in marine and industrial applications.
  • Nickel Alloys: High-temperature resistance and corrosion resistance; used in high-temperature industrial processes.
  • PVC Coated: Corrosion protection with insulation, used in various industries and applications.

What are the wire mesh applications?

applications of wire mesh

Wire mesh and its different types of wire mesh offer a wide range of applications due to its properties, be it sifting flour in bakeries or chemical processing. Its flexibility also makes it ideal for applications that require finer mesh with smaller openings, such as air and liquid filtration, powder sifting, and making insect screens for windows or porches. We use it in security and fencing to secure perimeters, just like woven wire fencing.

This adaptable material is used in construction and everyday life, reinforcing concrete structures, supporting plaster walls, and providing reliable food strainers in your kitchen. Moreover, wire mesh also serves specialized purposes like speaker grilles and medical filters.

What are the benefits of wire mesh?

There are various benefits of wire mesh:

  • Versatile
  • Strong & Durable
  • Safe & Efficient
  • Aesthetic
  • Cost-effective

How to choose the right wire mesh?

Knowing the different types of wire mesh, wire mesh size, and materials of wire mesh is essential in making informed decisions for particular needs. The wire mesh size refers to the wide variety of openings in line with a linear inch. There are certain parameters that are crucial for selecting the appropriate mesh for specific applications. Wire mesh sizes are determined by the following factors such as wire diameter, mesh opening and mesh count. So overall, the Factors to consider when selecting wire mesh are:

  • Material: Use a material that provides the desired properties such as corrosion resistance, strength and weight according to your application.
  • Wire Diameter and Mesh Opening: Decide on the correct wire diameter and mesh opening for your application as smaller mesh sizes offer higher filtration or finer sieving abilities whereas larger mesh sizes provide better airflow or visibility.
  • Mesh Type: Choose the type of mesh that will suit the application requirement, such as woven, welded, perforated, etc. that best suits the application’s requirements for flexibility, strength, and opening uniformity.
  • Application Requirements: Consider strength, durability, resistance to corrosion, and compatibility with other materials according to the requirements.

Did you know you can use a calculator and find by,

Mesh number = 25.4/wire diameter (mm) + aperture (mm)

Aperture = 25.4/mesh-wire diameter (mm)

Micron = aperture * 1000 = micron rating (µm)

Conclusion

Wire mesh is the epitome of engineering versatility and ingenuity. Its ability to be constructed in terms of material, size, and pattern makes it very useful as a component in many industries.  The different types of wire mesh provide solutions for numerous applications. Moreover whether this be through the robust constructions or delicate procedures of filtration wire mesh is customizable according to application requirements.
